詳細情報 |
|||
| 製品名: | 全方向惑星のボール ミル | モデルNO: | QXQM-4 |
|---|---|---|---|
| 総容積: | 4L | 最大容量: | 1.5L |
| 回転速度: | 70-670 RPM | スピード制御: | 周波数制御 |
| 電圧: | 220V-50Hzか110V-60Hz | パワー: | 0.75kw |
| ハイライト: | 4L Planetary Ball Mill,4x 1500ml Jars Planetary Ball Mill,360° Turnover Planetary Ball Mill |
||
製品の説明

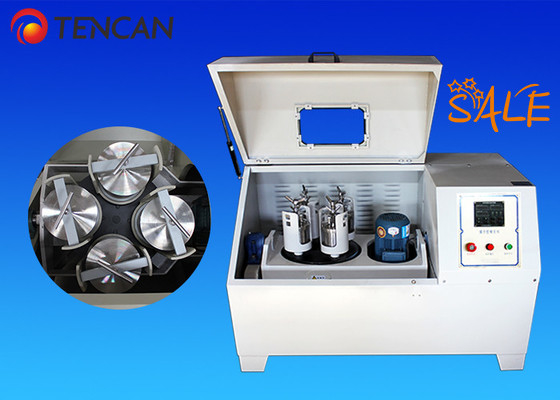

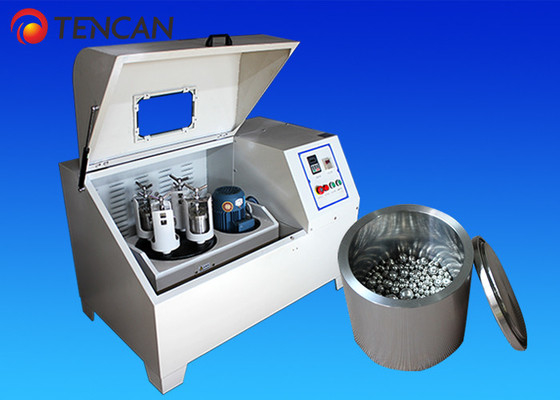

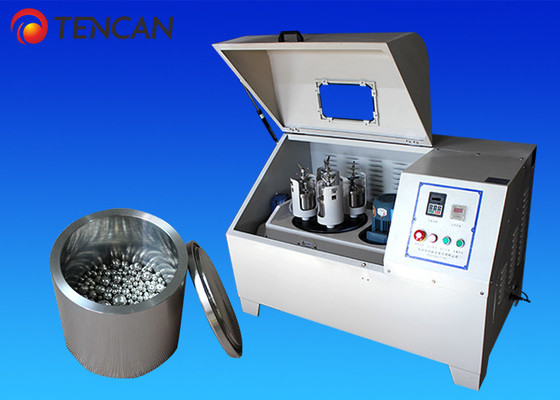

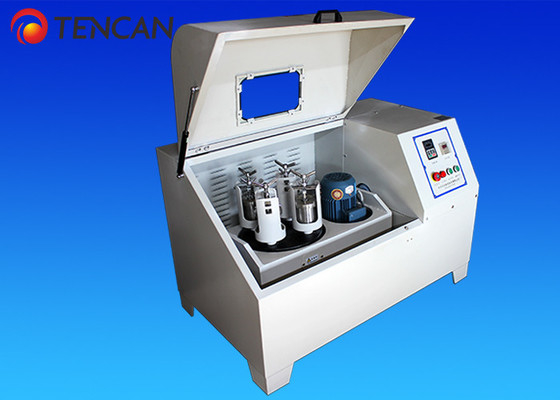

TENCAN 4L Full-Directional Benchtop Planetary Ball Mill – 360° Turnover with 4x 1500ml Jars
Overview
The TENCAN 4L Full-Directional Planetary Ball Mill is an advanced milling machine designed for high-tech material processing, fine grinding, nano powder production, and R&D applications. Featuring a 360° turnover motion, it ensures no dead corners, delivering ultra-fine, uniform powders with high efficiency. This benchtop model is ideal for research labs, universities, and industrial laboratories, supporting four 1500ml mill jars for simultaneous multi-sample processing. It also supports vacuum grinding when equipped with vacuum jars, making it perfect for sensitive materials.
Working Principle
Four grinding positions on a rotating turntable enable planetary + 360° self-rotation, ensuring high-impact grinding.
As the disc rotates, the jars spin at high speed, colliding grinding balls with materials for ultrafine particle reduction.
Dry & wet grinding supported, with output fineness down to 0.1μm (nano-scale).
Eliminates material sticking & sinking, improving grinding uniformity.
Applications
Widely used in:
✔ Geology, Mining, Metallurgy – Ore, alloy powder processing
✔ Electronics & Ceramics – Li-ion battery materials (LiCoO₂, LiMn₂O₄), MLCC, ZnO varistors
✔ Chemicals & Pigments – Catalysts, phosphors, rare earth polishing powder
✔ Advanced Materials – Nano powders, piezoelectric ceramics, ferrites (Ni-Zn, Mn-Zn)
✔ Pharmaceuticals & Environmental Science – Drug formulation, waste material analysis
Key Features & Advantages
✅ 360° Full-Directional Grinding – No dead corners, finer & more uniform powder
✅ Multi-Sample Processing – Grind 4 different materials simultaneously (max. 4x 1500ml jars)
✅ Programmable Control – Adjustable speed, timed grinding, auto-reverse function
✅ High Efficiency & Precision – Gear transmission ensures consistent, repeatable results
✅ Wide Material Compatibility – Works with nylon, stainless steel, zirconia, or PTFE jars & balls
✅ Vacuum & Inert Gas Option – Prevents oxidation for sensitive materials
✅ Low Noise & Compact Design – Benchtop-friendly for lab environments
Technical Highlights
Minimum Particle Size: 0.1μm (100nm)
Grinding Methods: Dry / Wet / Cryogenic
Jar Options: Stainless Steel, Nylon, Zirconia, PTFE, Agate
Safety Features: Overload protection, emergency stop
Ideal for nano-materials, battery R&D, ceramics, and advanced powder processing, the TENCAN 4L Planetary Ball Mill delivers unmatched grinding performance for research and small-scale production.
Technical Features
| Drive Mode | Gear drive and belt drive |
| Operation Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤10mm, other materials≤3mm |
| Output Granularity | Smallest 0.1 μm |
| Rotational Speed Ratio | 1/2 |
| Max. Continuous Operating Time | 48 hours |
| Optional Modes of Speed Control | Frequency conveter and automatic timing control |
| Materials of Jar | Stainless steel, agate, nylon, corundum, zirconia, etc. |
Technical Parameters
| Parameters of Full-Directional Planetary Ball mill | |||||
| Type | Power (KW) |
Voltage (V) |
Dimension(mm) | Revolution Speed (rpm) |
Rotation Speed (rpm) |
| QXQM-0.4 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-1 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-2 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-4 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-6 | 0.75 | 220V-50Hz | 1100*750*825 | 35-335 | 70-670 |
| QXQM-8 | 1.5 | 220V-50Hz | 1220*900*960 | 35-290 | 70-580 |
| QXQM-10 | 1.5 | 220V-50Hz | 1290*900*960 | 35-290 | 70-580 |
| QXQM-12 | 1.5 | 220V-50Hz | 1220*900*960 | 35-290 | 70-580 |
| QXQM-16 | 3 | 380V-50Hz | 1530*1070*1220 | 30-225 | 60-510 |
| QXQM-20 | 4 | 380V-50Hz | 1700*1100*1200 | 25-215 | 50-430 |
| QXQM-40 | 5.5 | 380V-51Hz | 1900*1450*1480 | 20-195 | 40-390 |
Accessories of Mill Jars & Balls
Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
