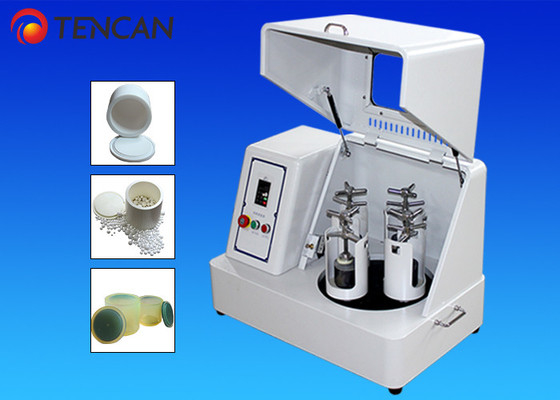

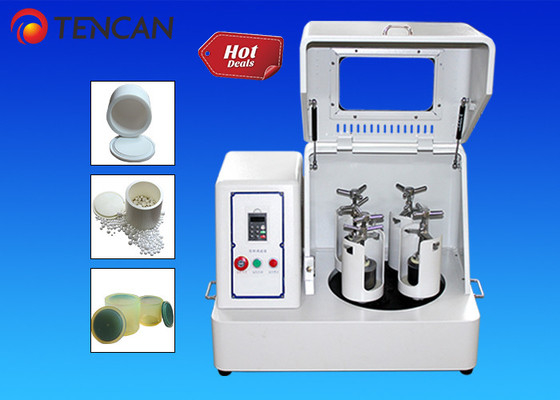

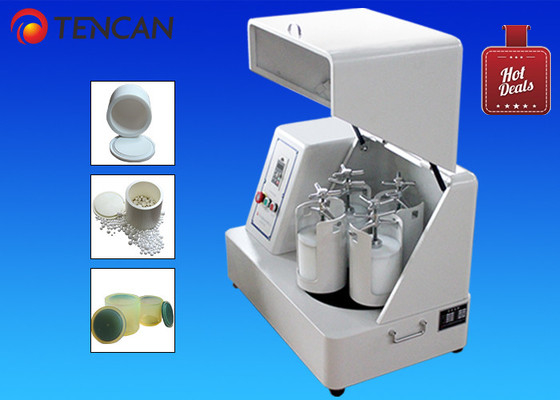

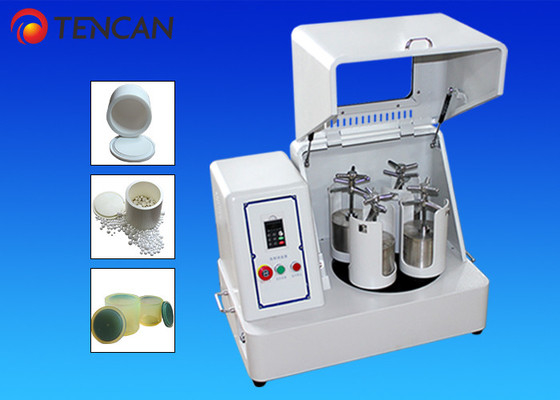

Speed Frequency Control TENCAN 10L Planetary Ball Mill for Coffee Bean Sample Grinding 220V-50Hz or 110V-60Hz
商品の詳細:
| 起源の場所: | 湖南,中国 |
| ブランド名: | TENCAN |
| 証明: | CE ISO |
| モデル番号: | XQM-10 |
お支払配送条件:
| 最小注文数量: | 1セット |
|---|---|
| 価格: | 交渉可能 |
| パッケージの詳細: | カートンまたは合板ケース |
| 受渡し時間: | 全額支払いを受けた後3~7日 |
| 支払条件: | T/T,ウェスタンユニオン,L/C,マネーグラム |
| 供給の能力: | 月あたり200セット |
|
詳細情報 |
|||
| 製品名: | 実験室の正方形の惑星のボール ミル | モデルNO: | XQM-10 |
|---|---|---|---|
| 電圧: | 220V-50Hzか110V-60Hz | パワー: | 1.5kw |
| 回転速度: | 70-580のrpm | スピード制御: | 周波数制御 |
| 総容積: | 10L | 最大容量: | 3.5L |
| ハイライト: | 10L Planetary Ball Mill,Coffee Bean Planetary Ball Mill,Sample Grinding Planetary Ball Mill |
||
製品の説明
"TENCAN 10L Food-Grade Planetary Ball Mill - Precision Coffee Bean Grinding System"
Product Description:
The TENCAN 10L Square Planetary Ball Mill is specifically engineered for premium coffee bean processing, featuring food-grade stainless steel grinding jars and balls. This specialized system efficiently transforms 1-3mm coffee beans into ultra-fine powder under 50μm within 4 hours of processing time. With four independent grinding stations, it allows simultaneous processing of up to 100g samples per batch while preserving the coffee's essential aromatic compounds.
Key Specifications:
Model: XQM-10 Planetary Ball Mill
Processing Capacity: 1000g per batch (4 samples simultaneously)
Input Size: 1-3mm coffee beans
Output Size: ≤50μm (adjustable)
Processing Time: 4 hours (standard)
Grinding Media: Stainless steel jars & balls
Subsequent Analysis: Particle size distribution testing
Technical Highlights:
• Food-safe stainless steel construction prevents contamination
• Precision grinding preserves coffee flavor profiles
• Multi-sample processing capability (4 stations)
• Programmable operation with variable speed control
• Low-temperature grinding maintains product quality
• Compact benchtop design with quiet operation
• Safety interlock system for operator protection
Applications:
Specialty coffee powder production
Instant coffee R&D
Coffee extract preparation
Food flavor enhancement studies
Beverage industry applications
This system has been successfully implemented in food research laboratories and premium coffee producers, delivering consistent results for gourmet coffee powder preparation while maintaining all original performance parameters. The equipment's precise control enables customization of grind size for specific culinary applications.
⇒
Before Grinding After Grinding
Features
Gear-driven planetary movement for consistent results
Four independent grinding stations
Low-noise operation (≤60dB)
Safety interlock mechanism
Compact benchtop design (L×W×H: 680×480×460mm)
Technical Features
| Technical Features | |
| Drive Mode | Gear drive and belt drive |
| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | < 10mm for soft material; < 3mm for hard material |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | 1/2 |
| Max.Continuous Operating Time | 72 hours |
| Materials of Jar | stainless steel,agate,nylon,corundum,zirconia, PU, PTFE etc |
Technical Parameters
| Main Parameters of 8L 110 / 220v Planetary Ball Mill - Square design | |||||
| Model | Power(kW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
Rotation Speed (rpm) |
| XQM-8 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
| XQM-10 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
| XQM-12 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 |
Accessories of Mill Jars & Balls
Available Mill Jars:
304 stainless steel mill jar, 316 stainless steel mill jar, tungsten carbide mill jar, agate mill jar, alumina ceramic mill jar(also called corundum mill jar), zirconia mill jar, nylon mill jar, polyurethane mill jar, mill jar (PTFE), and etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum mill jar |
| References for Matchable Jar Sizes with Squre type Planetary Ball Mill | ||||
| Model No. | Total Volume (L) |
Matchable Jar Sizes |
Matchable Jars Quantity |
Matchable Vacuum Jar Sizes |
| XQM-1 | 1.0L | 50ml, 100ml, 250ml | 2pcs or 4pcs | 50ml, 100ml |
| XQM-2 | 2.0L | 250ml, 500ml | 2pcs or 4pcs | 50ml, 100ml, 250ml |
| XQM-4 | 4.0L | 250ml, 500ml,1000ml | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml |
| XQM-6 | 6.0L | 500ml, 1000ml, 1500ml | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml, 1L |
| XQM-8 | 8.0L | 1L, 2L | 2pcs or 4pcs | 50ml, 100ml, 250ml, 500ml, 1L, 1.5L |
| XQM-10 | 10.0L | 1L, 2L, 2.5L | 2pcs or 4pcs | 1L, 1.5L, 2L |
| XQM-12 | 12.0L | 1L, 2L, 2.5L, 3L | 2pcs or 4pcs | 1L, 1.5L, 2L |
| XQM-16 | 16.0L | 2L, 3L, 4L | 2pcs or 4pcs | 1L, 1.5L, 2L, 3L |
Available Mill Balls:
304 stainless steel mill balls, 316 stainless steel mill balls, tungsten carbide mill balls, agate mill balls, alumina balls, zirconia mill balls, and etc.
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
