詳細情報 |
|||
| 回転速度: | 0~10 RPM可変&可逆 | 炉傾斜角: | 0~30°調整可能 |
|---|---|---|---|
| 加熱速度: | 0～20℃/分 調整可能 | 温度精度: | ±1℃の精度制御 |
| 温度プログラム: | 50 セグメントのプログラム可能な PID 制御 | チューブ径: | 60~150mm オプション |
| 加熱ゾーン: | 300mm / 450mm オプション | チューブ材質: | 高純度石英管 |
| 均一な加熱設計: | より優れた材料旋削のための内部石英リフティングプレート | 応用: | 電池正極材料の焼成 |
| ハイライト: | 1200C Lab Vacuum Tubular Furnace,MOSI2 Lab Vacuum Furnace,High Purity Lab Vacuum Furnace |
||
製品の説明

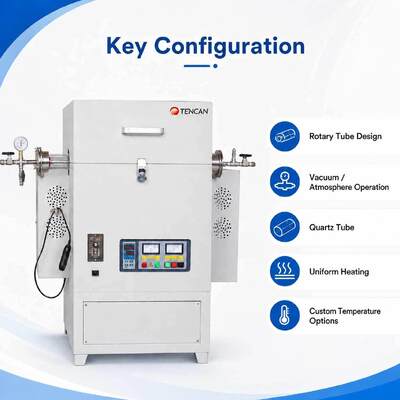

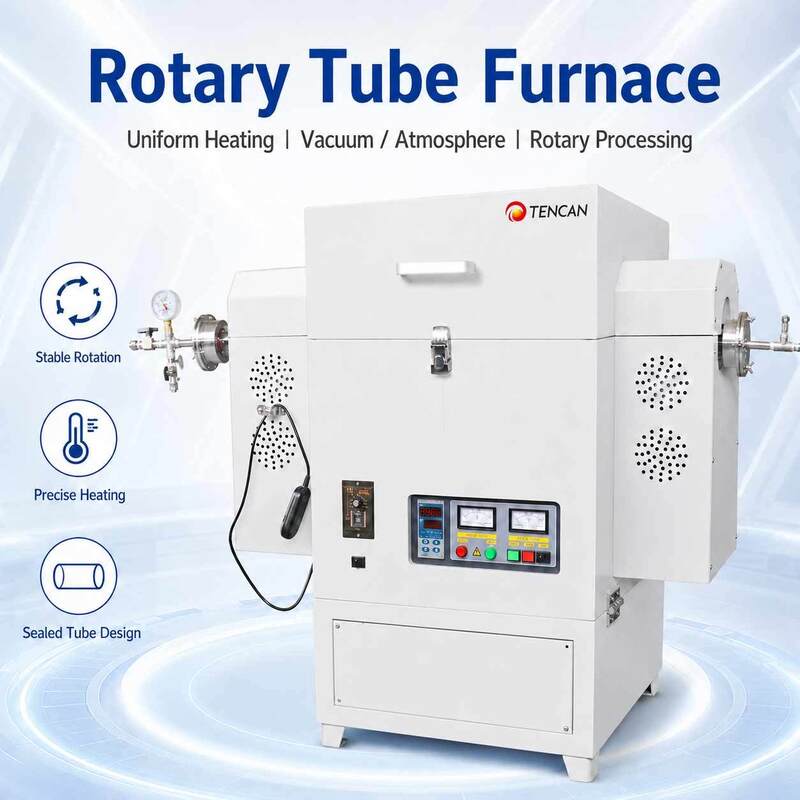

The Rotary Tube Furnace is specially designed to achieve excellent material uniformity during the sintering of inorganic compounds. It is particularly suitable for preparing conductive-coated anode materials for lithium-ion batteries. The furnace can also be used for uniform drying, calcination, heat treatment, and other thermal processing applications involving powders and granular materials.
The furnace body can be tilted up to 30°, while the furnace tube provides continuous 360° rotation. This rotating and tilting design promotes even material mixing, uniform heating, and consistent processing results. A dual-zone heating configuration is also available upon request, providing improved temperature uniformity and greater flexibility for different sintering and calcination processes.
Product Applications
The Rotary Tube Furnace is a thermal processing system in which the furnace tube rotates around its longitudinal axis during heating. The continuous rotation promotes uniform heating, mixing, and material movement throughout the thermal treatment process.

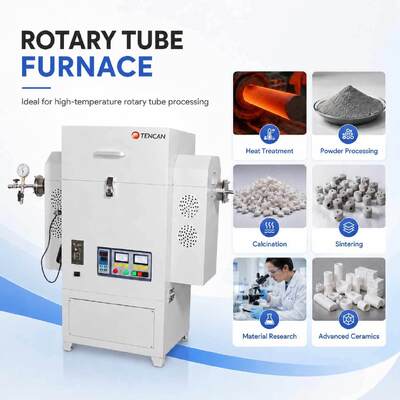

It is particularly suitable for powders, granules, and small solid particles, and can be used for continuous heat treatment, drying, calcination, chemical reactions, sintering, and other high-temperature processing applications. The rotating tube design helps reduce material agglomeration and temperature differences, resulting in more consistent processing and improved product uniformity.
Product Features
-
Maximum operating temperature: 1200°C
-
Intelligent 50-segment programmable temperature controller for automatic heating process management
-
Adjustable heating rate from 0 to 20°C/min
-
Temperature control accuracy of ±1°C
-

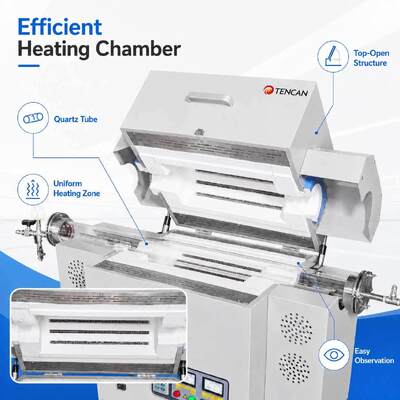

Top-opening furnace cover allows operators to observe the material during heating
-
Furnace body tilting angle adjustable from 0° to 30° for convenient material loading and discharge
-
Adjustable tube rotation speed from 0 to 15 rpm, with forward and reverse rotation
-
Three quartz lifting blades are installed inside the furnace tube to continuously lift, turn, and mix the material during rotation, ensuring uniform heat distribution
-
Integrated safety functions, including power cut-off when the furnace cover is opened, overtemperature alarm, and electrical leakage protection
Technical Parameters
| Model | Furnace Tube Size (Small-End Diameter × Heating Zone) (mm) |
Large-End Diameter (mm) |
Power (kW) |
Maximum Temperature (°C) |
Working Temperature (°C) |
Thermocouple | Furnace Tube Material | Heating Element |
|---|---|---|---|---|---|---|---|---|
| TC-12NRT-60/300 | 60 × 300 | 120 | 5 | 1200 | 1100 | K-Type | Quartz Tube | FeCrAl Resistance Wire |
| TC-12NRT-60/450 | 60 × 450 | 5 | ||||||
| TC-12NRT-80/300 | 80 × 300 | 150 | 5 | |||||
| TC-12NRT-80/450 | 80 × 450 | 5 | ||||||
| TC-12NRT-100/300 | 100 × 300 | 180 | 7 | |||||
| TC-12NRT-100/450 | 100 × 450 | 7 | ||||||
| TC-12NRT-150/300 | 150 × 300 | 200 | 9 | |||||
| TC-12NRT-150/450 | 150 × 450 | 9 |
Related Accessories
- 2 furnace tube plugs
- 1 furnace tube

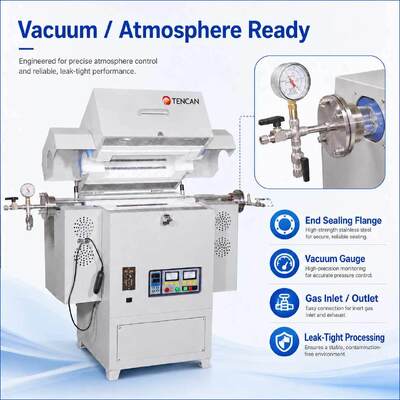

- 1 vacuum pump
- 1 set of vacuum flanges
- 1 vacuum pressure gauge
